Gambar & Spesifikasi Yamaha XEON 125 cc

Yamaha XEON 125 cc bike from Yamaha's latest output. Various new technologies complement this XEON Yamaha. DiASil Cylinder, cylinder type has a strong resistance against wear / friction and is very easy to remove the heat so that their remaining life becomes longer (durable). Liquid Cooled System to maintain the engine temperature to remain stable, especially in bad road conditions, or for driving long distances.
Forged Piston Yamaha XEON has a very strong resistance against wear / friction and lighter weight which makes piston has a longer shelf life.

Throttle Position Sensor, carburetor equipped with TPS to generate the ideal ignition timing so as to produce more complete combustion, and fuel consumption more efficient.

Auto choke consumer ease when starting the engine in cold conditions / early morning. With Ergonomic Seat Design, make a wider trunk and can store more things, including half-face helmet.

Yamaha XEON MerahGambar Yamaha XEON merah

Yamaha XEON Hijau

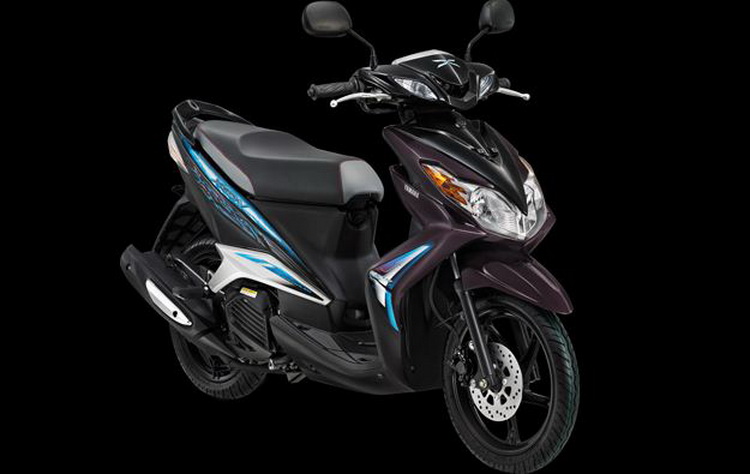

Yamaha XEON Coklat
Yamaha XEON Biru
Yamaha XEON Putih
Specifications for Yamaha XEON 125 cc

Engine
  • Type 4 Step, SOHC, Liquid Cooled
  • Valume Cylinder 124 cc
  • Number / Position Cylinder Single Cylinder / Horizontal
  • Diameter x Stroke 52.4 x 57.9 mm
  • Comparison of Compression 10.9: 1
  • Wet Lubrication
  • Fuel System Mikuni BS 26 x 1
  • Ignition System DC C.D.I
  • Battery 12V, 3.5Ah / YTZ5S
  • CR7E spark plugs (NGK)
  • Starter System Electric & Kick Starter
  • Tank Capacity 4.1 Liter
  • Total Engine Oil Capacity 0.9 Liter
  • Periodic 0.8 Liter
  • Transmission type Automatic V-Belt
  • CVT Automatic Transmission Operation Pattern
  • Clutch Type Dry, Centrifugal Clutch
  • Maximum power of 8.05 kW / 8500 rpm
  • Maximum torque 10.1 Nm / 7000 rpm
Framework
  • Steel Pipe Type
  • Suspension Front Telescopic
  • Rear Suspension Swing Arm, Single Suspension
  • Front Disc Brakes
  • Rear Brake Tromol
  • Front Wheel Size 70/90 - 14M / C 38P
  • Rear Wheel Size 80/90 - 14M / C 44P
Dimension
  • Length 1850 mm
  • Width 685 mm
  • Height 1050 mm
  • Seat Height 750 mm
  • 1260 mm wheelbase
  • Lowest distance of 125 mm to Land
  • Fill Weight 103 kg
